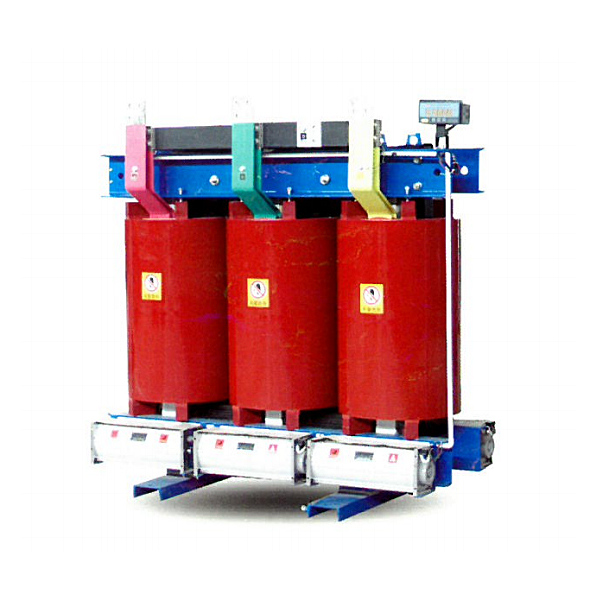

SCB11-30~2500/10

Epoxy resin casting dry type distribution transformer

The product that is a self-developed according to Gemany MORA technique by our company with high safety & protecting environment.
They are used in bad environment for high fireproof, heavy load motion and dirty damp. Such as airport, power plant, hospital, Uptown, nuclear power plant, nuclear steamers ect. Especial and important site.

Executive Standard
performance Characteristic
Type and Signification
Structure Characteristic
Technical Paraweters

Executive Standard: ●GB1094.11-2007
Dry power transformer
●GB/T 10228-2008
Technical parameters and requirements for dry power transformer
●GB/T17211-1998
Load guide for dry type power transformers
●GB1094.3-2003
Power transformers third paris：insulation level，insulation test and insulation air gap
●JB/T10088-2004 6~500kV
Transformer sound level JB/T 56009-1998
Classification of product quality of dry power transformer
●The international standard IEC726

performance Characteristic: 1. Safety, fireproofing, non-polluter, directly used in load center
2. High mechanical intension
3. Low loss, low noise, obviously save energy, free from the maintenance.
4. Strong ability of spreading hot and loading, and which they will be raiseci the capacity while forcing the breeze.
5. Good function of defending moisture which make they suitable for in hich degree of humidity and other bad environments.
6. Providing with the perfect temperature exarrination and the protection systems. Adopting the intelligence signal temperature control system, which can monitor and cruise back to show automatically the each work temperature of three-phase winding series: furthermore they can start automatically and stop the breeze machine, and report to the police to jump.
7. Small size, light weight, little covering space, low expenses.

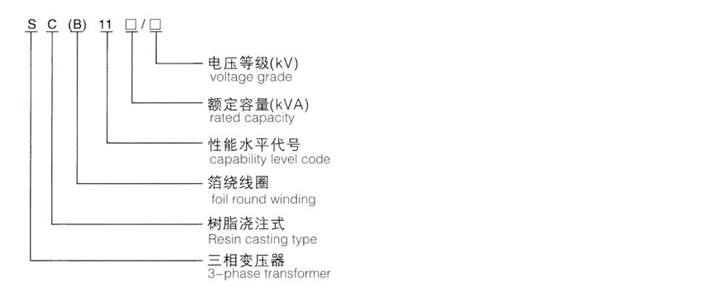

Type and Signification

Structure Characteristic: ●The iron core is made of superior scion steel slice, structure is inclined joints fold type.
●Low-voltage coil structure that is foil type rounded by high-quality copper, the high-voltage coil structure that is layer type by the vacuum-iron oxygen molded.

Technical Paraweters: The data in table only for reference. we wouldn't advice again if they are changed.
