ZG（F）S11-H（Z）-200-2000/10

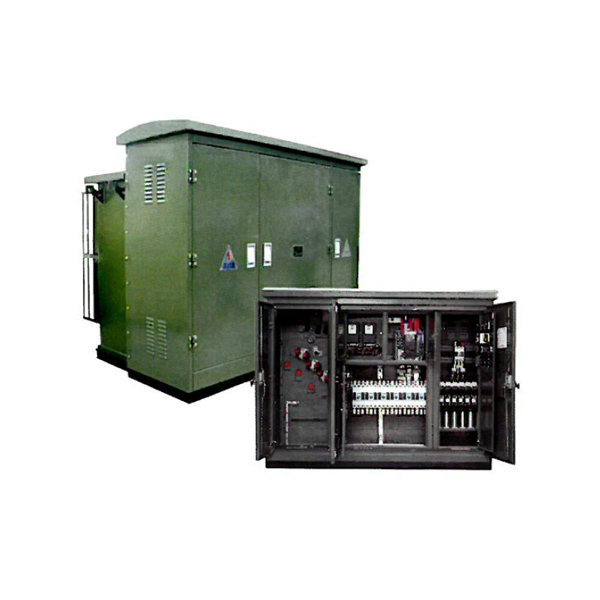

Combined transformer（Padmounted Transformer）

ZG(F)S11 combined transformer is my company in absorbing american-style transformer(Padmounted Trans-their weight. this) technology on the basis of self-developed high-tech products. Also called American box.
Range is 200~1000 kva capacity, suitable for 10 kv distribution network neutral point insulation system or by the small resistance grounding system, and the 400v system is three phase four wire system neutral point grounding system directly.
Complete sets of strong, reliable power supply, small volume, light weight, low noise; With ring type and terminal type cable wire.
Use this product make 10 kv power grid load center, reduce the line loss, improve power supply reliability, beautify the urban environment, is suitable for the reform of city network.

Reference standard
Model and meaning
Condition of use
Product features
Technical data

Reference standard: •JB/T10217-2000 Combined transformer
•GB1094.1-2-2003 Power transformer
•GB1094.3-5-2003 3~63kV AC high voltage load switch
•GB7251.12-2013 Low voltage complete sets of equipment and control equipment in the first part of the type testing and some type testing equipment
•The international standard IEC76

Model and meaning

Condition of use: 1. the elevation of <1000m subject to design(more than this range);
2. wind pressure: no more than 70 pa(35 m/s)
3. humidity:day average no greater than 95%;On average no greater than 90%
4. environmental temperature,the highest temperature +40℃;The lowest temperature 25℃
5. shockproof level:0.4 m/s horizontal acceleration;The vertical acceleration of 0.15 m/s
6. earthquake intensity:8 degrees
7. installation site slope:no more than 3 degrees
8. the installation environment:the surrounding environment should be from the corrosive，combustible gases and water vapor pollution obviously.
installation location no violent vibration.

Product features: 1. the elevation of <1000 m subject to design（more than this range）；
2. wind pressure:no more than 70 pa（35 m/s）;
3. humidity:day average no greater than 95%；On average no greater than 90%;
4. environmental temperature，the highest temperature +40 ℃；The lowest temperature25℃;
5. shockproof level：0.4 m/s horizontal acceleration；The vertical acceleration of 0.15 m/s；
6. earthquake intensity：8 degrees；
7. installation site slope:no more than 3 degrees;
8. the installation environment:the surrounding environment should be from the corrosive，combustible gases and water vapor pollution obviously，installation location no violent vibration.
