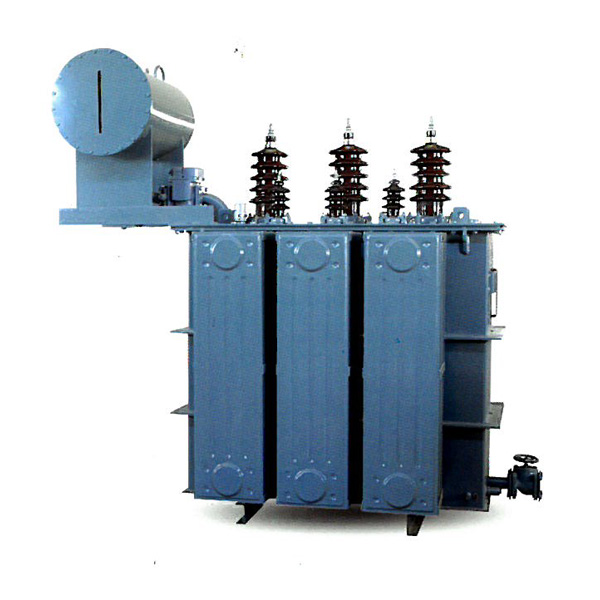

Three phase double winding non excitation voltage regulating distribution transformer
· Kind: Outdoor Type Normal use Environment: Elevation less than 1000m; Temperature Range :-25 ℃~+45℃
· Especial Environment: Elevation more than 1000m; Temperature Range:-45 ℃~+40℃
· Opposite air humidty: ≤90% (+25℃)
· Installation Site: Nothing corrodent air, noting obvious dirty mark.
· The product are used for lighting and deliver power in industry and agriculture.
· GB 1094.1-2-2013 Power transformer
· GB 1094.3-2003 Power transformer
· GB/T1094.4-2005 Power transformer
· GB 1094.5-2008 Power transformer
· GB/T6451-2008 Three-phase oil-immersed power transformer technica-
· parameters and requirements
· The international standard IEC76
The products which function reach international advance level of 2000 years are reformed for material, technics, structure. They have a characteristic of high efficiency and low-loss, which save much electric loss and cost. improve society benefit.
The iron corn of product is made of high grade silicon steel, vacuum moided oil. The tankis square. The radiator modality has ripple type patch type, pipe type. Customer can choase freely the type
|
Kated |
Voltatge |
Marks |
No-Load Loss |
On-Load loss |
Short cirait-z |
No-Load Cur |
Weight(kg) |
Size(mm) |
Distance |
||||
|
H-V |
Chng |
L-V |
Wain w.t |
Oil w.t |
Ttl w.t |
L×W×H |
|||||||
|
50 |
35 |
±5% |
0.4 |
YynO |
210 |
1210/1270 |
6.5 |
2.0 |
230 |
270 |
700 |
1030×850×1460 |
550×550 |
|
100 |
290 |
2020/2120 |
1.8 |
370 |
320 |
950 |
1080×935×1580 |
550×550 |
|||||
|
125 |
340 |
2380/2500 |
1.7 |
440 |
350 |
1090 |
1100×940×1610 |
550×550 |
|||||
|
160 |
360 |
2830/2970 |
1.6 |
530 |
380 |
1120 |
1120×1035×1630 |
550×550 |
|||||
|
200 |
430 |
3330/3500 |
1.5 |
600 |
410 |
1340 |
1150×1050×1670 |
660×660 |
|||||
|
250 |
510 |
3960/4160 |
1.4 |
690 |
450 |
1520 |
1450×1130×1700 |
660×660 |
|||||
|
315 |
610 |
4770/5010 |
1.4 |
800 |
490 |
1730 |
1885×910×1720 |
660×660 |
|||||
|
400 |
730 |
5760/6050 |
1.3 |
920 |
540 |
1960 |
1950×1010×1820 |
660×660 |
|||||
|
500 |
860 |
6930/7280 |
1.2 |
1060 |
590 |
2210 |
2010×1070×1860 |
660×660 |
|||||
|
630 |
1040 |
8280 |
1.1 |
1460 |
620 |
2510 |
2100×1180×1962 |
660×660 |
|||||
|
800 |
1230 |
9900 |
1.0 |
1520 |
670 |
2940 |
2170×1260×2060 |
820×820 |
|||||
|
1000 |
1440 |
12150 |
1.0 |
1890 |
990 |
3910 |
2200×1690×2120 |
820×820 |
|||||
|
1250 |
1760 |
14670 |
0.9 |
2100 |
1090 |
4590 |
2230×1710×2250 |
820×820 |
|||||
|
1600 |
2120 |
17550 |
0.8 |
2820 |
1150 |
5150 |
2350×2020×2330 |
820×820 |
|||||
|
2000 |
2720 |
19350 |
0.7 |
2950 |
1200 |
5360 |
2600×2120×2350 |
820×820 |
|||||
|
2500 |
3200 |
20700 |
0.6 |
3350 |
1290 |
5870 |
2620×2220×2470 |
1070×1070 |
|||||
Note:
1. Load loss in the table below the diagonal values for Dyn11 connection group of products.
2. Technical parameters of 10kV distribution transformer for large capacity, size and weight data, please contact us.
3. Can provide various voltage transformer, short circuit impedance, coupling mode according to the user demand.
4. Table weiaht and size data for reference only, are subiect to change without notice
