SZ11-200~2000/10

Three phase oil immersed on load tap changing distribution transformer

· Kind: Outdoor Type.
· Normal use Environment: Elevation less than 1000m; Temperature Range :-25℃~+45℃.
· Especial Environment: Elevation more than 1000m; Temperature Range :-45℃~+40℃.
· Installation Site: Nothing corrodent air, noting obvious dirty mark.

Executive Standard
Type and Signification
performance Characteristic
Technical Paraweters

Executive Standard: · GB 1094.1-2-2013 Power transformer
· GB 1094.3-2003 Power transformer
· GB 1094.5-2008 Power transformer
· GB/T1094.4-2005 Power transformer
· GB/T6451-2008 Three-phase oil-immersed power transformer technicalparameters and requirements
· The international standard IEC76

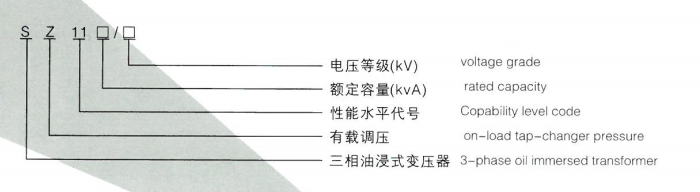

Type and Signification

performance Characteristic: The S11 series product' s no-load Loss decreased 30%, on-load loss decrease 10.20% on the basis of S9 series, and the service life increase one times. It also work order even if on the condition of exceed load 20%. The noise average reduces 2-4db on the run.

Technical Paraweters: Note:Table weight and size data for reference only, are subjectto change without notice
