S13-M-30~2500/10

Three phase plane wound core fully sealed Distribution Transformer

· Three-phase distribution transformers with wound core seal,30 kva 1 000 kva capacity range, a total of 1 5 varieties.
· For three phase three, core pillar rolled inside and outside the ox structure. High degree of mechanization.
· Continuous winding. high and low voltage coil on the core column, good concentricity, tighten the coil.
· Main technical and economic indicators, reached the interna-tional advanced level.

Executive Standard
Type and Signification
Performance Characteristic
Structure Characteristic
Technical Paraweters

Executive Standard: · GB 1094.1-2-2013 Power transformer
· GB 1094.3-2003 Power transformer
· GB/T1094.4-2005 Power transformer
· GB 1094.5-2008 Power transformer
· GB/T6451-2008 Three-phase oil-immersed power transformer technicalparam-eters and requirements
· The international standard IEC76
· GB/T25289-2010 20kV Three-phase oil-immersed power transformer technicalparam-eters and requirements

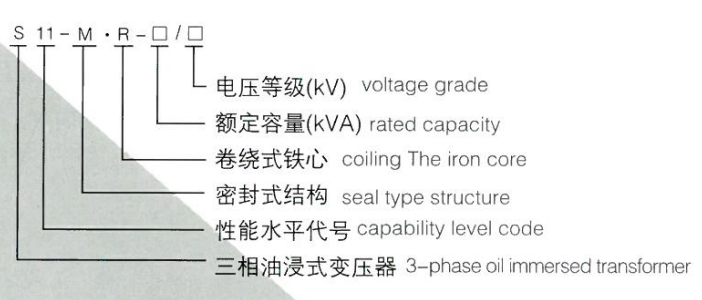

Type and Signification

Performance Characteristic: · This transformer and 'g' type transformer, no-load current aver-age reduce more than 70%: About 3 no-load loss on average 30% lower.
· J B/T 1008-1 999 standard is compared, the noise is small about 7 d B
· Oil level and high and low voltage winding temperature rise.20 K lower than the temperature rise limit about a 1 3 K, has the certain load capacity
· Anti-short circuit ability, high reliability.

Structure Characteristic: · Core: structure of three phase three pillar type rolled inside and outside the box, column for multistage ladder circular cross section; Core.coiling by vacuum annealing after removing stress; Trough bending clip, pull the screw tighten body; Core surface coating is special glue ensure that core deformation, do not rust.
· Winding and body: low voltage winding for 1 -6 wire and around four layer or double layer cylindrical (500 kVA and below) or spira winding (630 kVA and above): Anaerobic copper conductor adopts control: High and low voltage winding layer ask insulation tape for lind lattice point; High voltage winding axial oil the tao and the empty between high and low pressure oil gap to stay shade structure; lron yoke insulation and trapezoidal block is an organic whole, make body even under pressure: Body structure of new type hanger position, vertical and horizontal orientation, ensure displacement of solid body.
· Tank: adopt corrugated tank, sealed structure, not leak, maintenance free.

Technical Paraweters: Note:
1. Load loss in the table below the diagonal values for Dyn11 products.
2. Technical parameters of 10kV distribution transformer for large capacity, size and weight data, please contact us.
3. Can provide various voltage transformer, short circuit impedance, coupling mode according to the user demand
4. Table weight and size data for reference only, are subject to change without notice.
