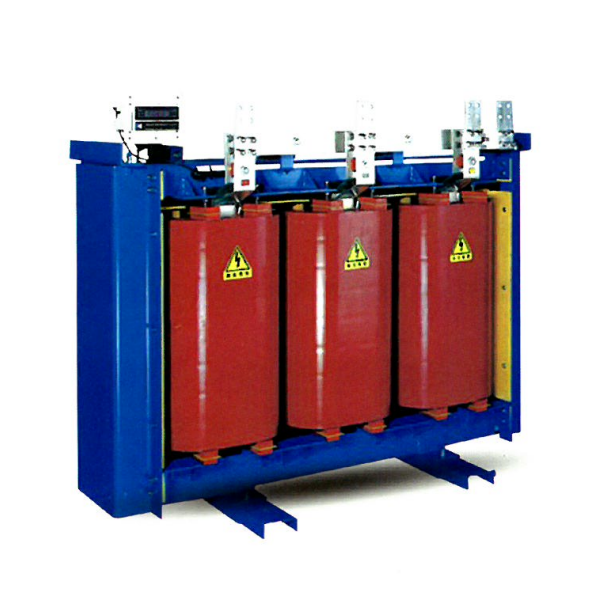

SCBH15-100~2500/10

Amorphous alloy dry type transformer

This product as a new technology of energy-saving power distribution equipment, has a low no-load loss. no oil, flame retardant from extinguish, resistant to moisture, crackresistance, etc. Canreplace the ordinary dry type transformer, mainly is suitable for the site such as urban network distribution industry. Commercial buildings, high-rise buildings, airports, industrial and mining enterprises, power plants, oil platform, subway and tunnel and other important and special fire protection requirements, also can form a box-type substation and switchgear.
  • Executive Standard
  • Type and Signification
  • Structure Characteristic
  • Technical Paraweters
Executive Standard
· GB 1094.11-2007 power transformer
· GB/T 22072-2008 Dry type amorphous alloy iron core distribution transformer technical
· parameters and requirements
· JB/T 3837-2010 Transformer product model establish-ment method
· The international standard IEC726

Type and Signification
Structure Characteristic
1. small volume, light weight;
2. safe, reliable, no pollution, can be run directly in the center of the load:
3. high mechanical strength, anti-short circuit ability, partial discharge is small, good thermal stability, high reliability, long service life.
4. no-load loss, high efficiency, low noise, energy saving effect is obvious:
5. good heat dissipation performance, operation ability, forced air cooling capacity can be improved when running;
6. moistureproof performance is good, adapt to the high humidity and other harsh environment;
7. with environmental protection, flame retardant, explosion-proof, free maintenance, etc: Mainly applicable to the site, such asurban network distribution industry. Commercial buildings, high-rise buildings, airports, GongKuangYe, power plants, oil plattorm Subway and tunnel and other important and has a special place for fire prevention requirements, also can form a box-type subst-ation and switchgear.

Technical Paraweters

Note:
1. Special specifications or non-standard products of various technical parameters are determined by supply and demand both sides talks things over.
2. Weiçht and dimension data in the table is for reference only, if there are changes without pri
